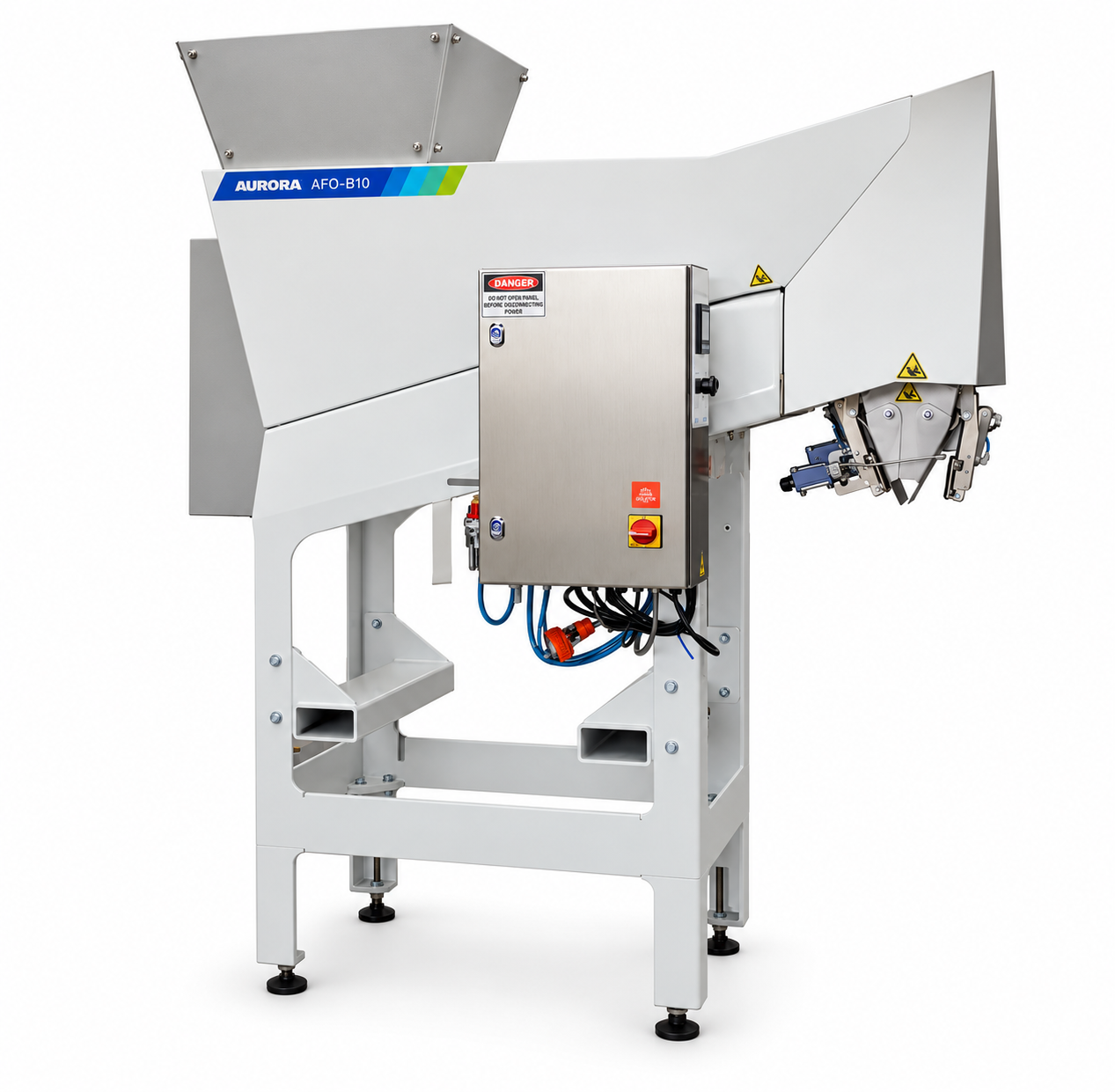

AFO-B10 Manual Gross Weigh Belt Packer

The AFO-B10 Belt Packer is designed to fill a wide range of granular or fibrous materials into open mouth bags and containers.



The AFO-B10 Belt Packer uses a single belt feeder and gross weigher system to feed product into bag clamps. The bag fills rapidly up to a pre-set point, then the belt uses a trickle feed system to accurately complete the fill to the total set weight required.

DOWNLOAD DATASHEET
CAPACITY:

600 bags per/hour

BAG TYPE:

Open Mouth

Features

  • Up to 600 bags per hour
  • Weight range of 5 kg – 40 kg
  • Two-speed belt conveyor
  • Product bed depth regulator
  • Catch tray drawer for rapid cleaning
  • Programmable recipe function for multiple products

Options

  • Automatic sack placers
  • Sealing & sewing systems
  • Bag conveying and conditioning systems
  • Product specific belts
  • Gross weigh filling
  • Detachable Bag Clamps

Description

The GSB150 uses a single belt feeder and net weigher system to feed product into bag clamps. The bag fills rapidly up to a pre-set point, then the belt uses a trickle feed system to accurately complete the fill to the total set weight required.
