Vacuum Tube Lifter JumboFlex Mobile

The transportable tube lifter solution for packages up to 50 kg

A tube lifter that can be used for handling goods in changing locations and that offers very compact transport dimensions: That is the JumboFlex Mobile.

Application

Transportable handling solution for flexible use in changing locations
Handling workpieces weighing up to 50 kg with the JumboFlex one-hand tube lifter
Ideal as a temporary solution, but also for permanent use, such as for loading machines
Operation via power connection (400V 50Hz 16A)

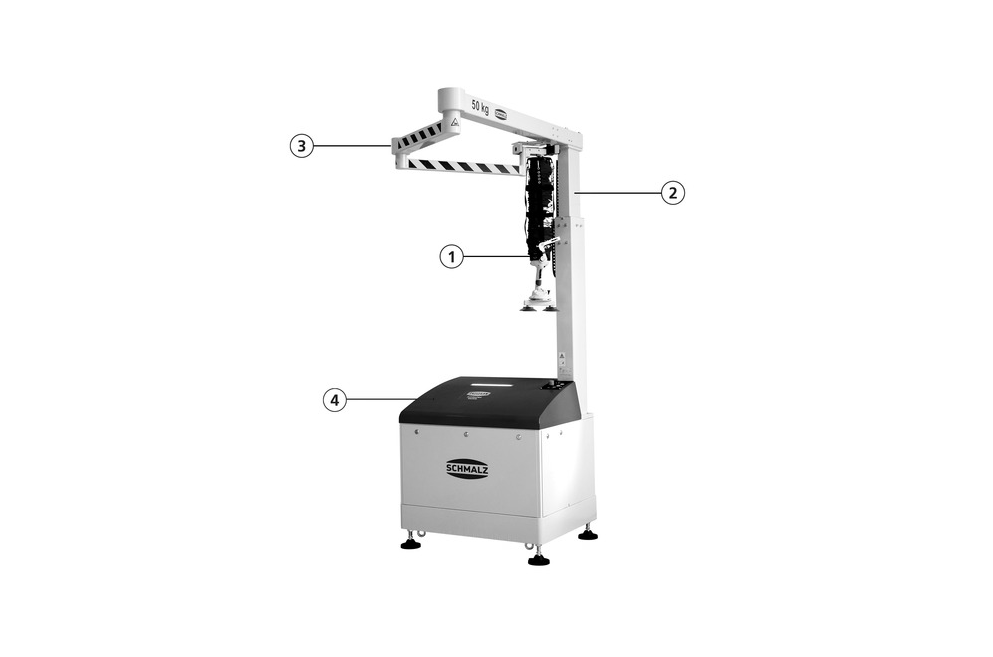

(1) Vacuum tube lifter JumboFlex with 35 kg or 50 kg load capacity and approx. 1,500 mm lift

(2) Electrical height-adjustable column for compact transport size of approx. 2,250 mm total height

(3) Responsive articulated-arm jib with 360° radius of action with approx. 2,400 mm reach and approx. 1,600 mm moving length

(4) Basic module with vacuum generation and status LED display

ROI CALCULATOR

Features

Compact solution for changing operational locations
Ergonomic handling with the tube lifter JumboFlex and responsive articulated-arm jib
Compact transport dimensions due to height-adjustable column and compact parking position of the articulated-arm jib
Low noise level due to sophisticated main body with very good noise insulation
Due to the operation with power voltage 400V 50Hz 16 A the JumboFlex Mobile can be operated at common industrial sockets
