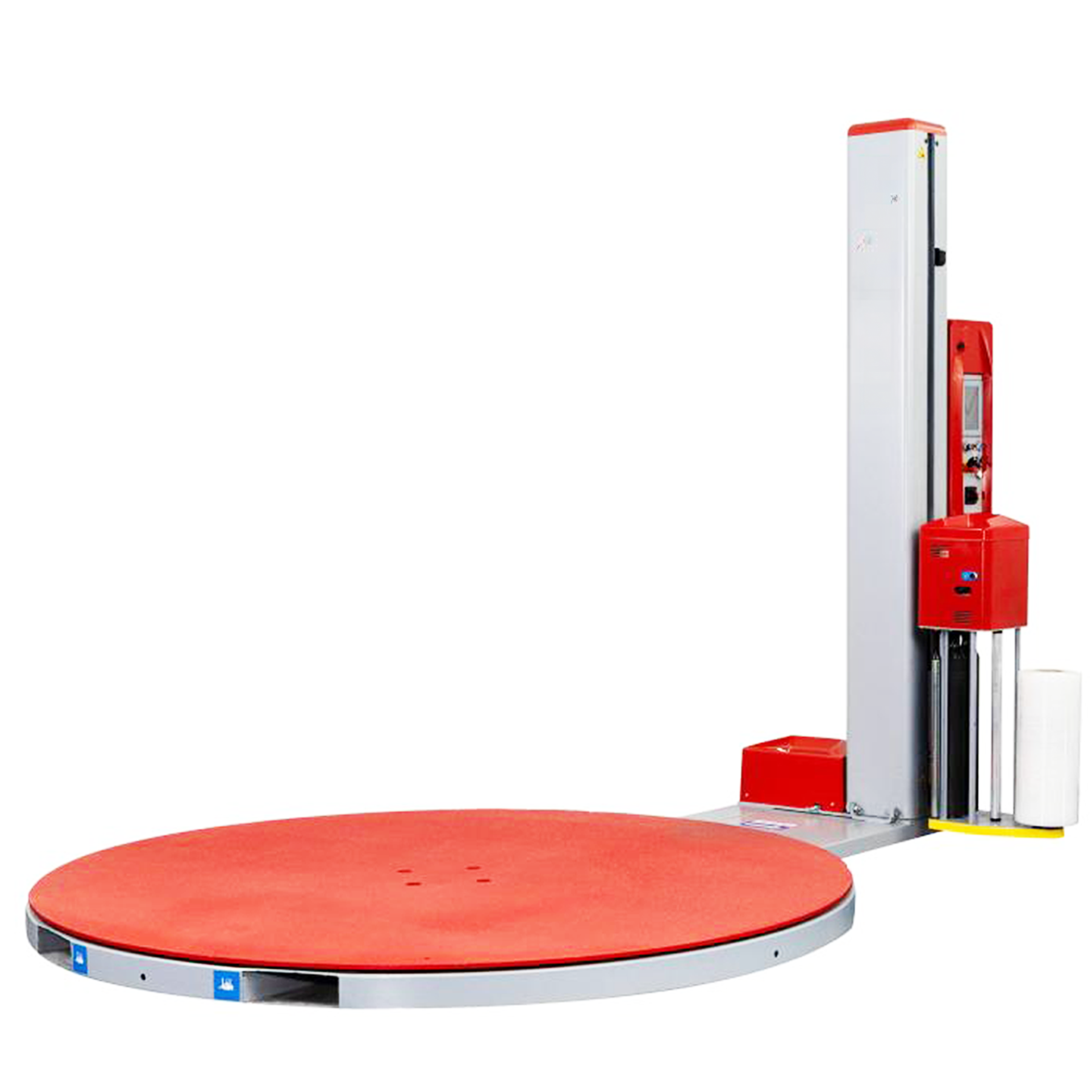

AXIS Max X5 314 Pallet Wrapper
Semi-automatic turntable with increased diameter plate for pallet wrapping with stretch film
The new generation of turntable stretch wrapping machines that is redefining the standards of reliability and productivity in the industry. We introduce you to the new Freesby MAX.
The Freesby MAX is at the forefront of reliability and productivity and is designed with a focus on ease of use thanks to new user-friendly multifunctional panels and to the features of the turntable designed for stabilising light and irregular loads, with the possibility of remote monitoring of functions thanks to the N-Connect system.
The main feature of this machine is the diameter of the plate, which has an STD size of Ø 1800 with the possibility of expansion up to Ø 2400.

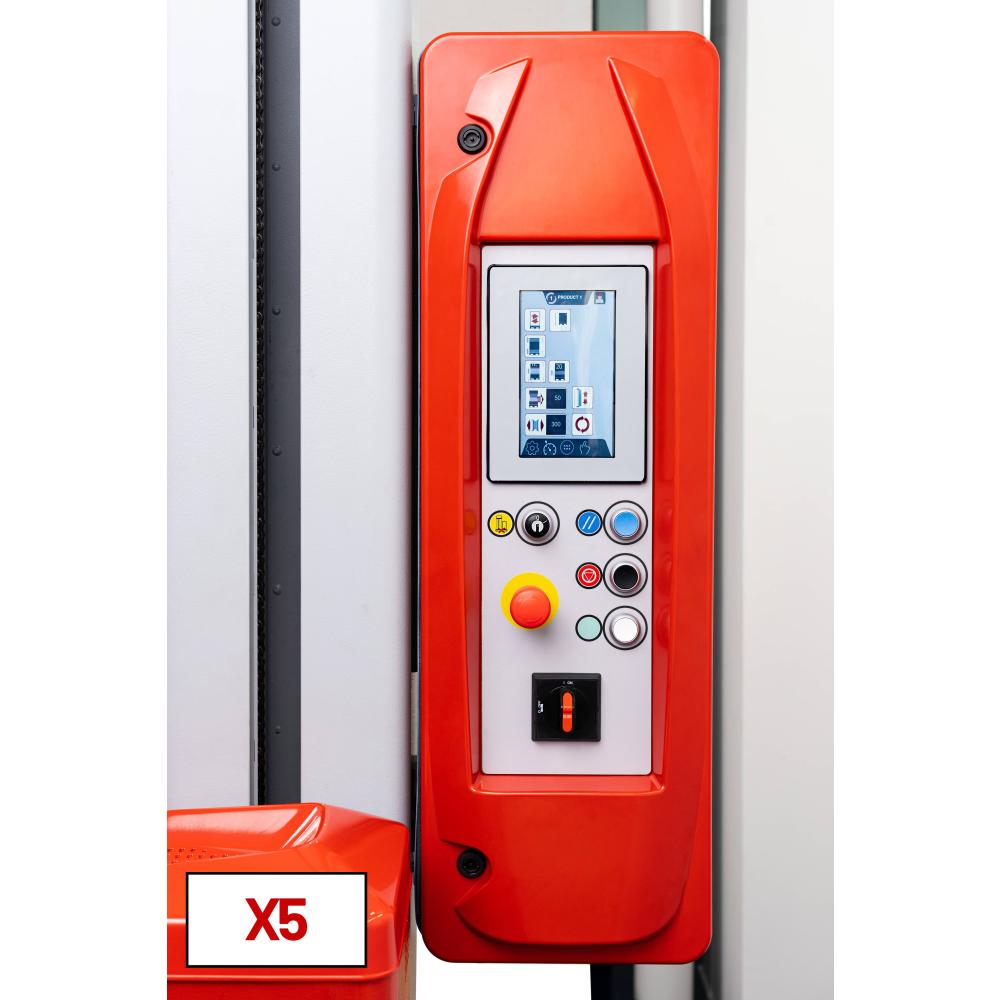

The Freesby MAX has two user-friendly and innovative control panels (X4 and X5 controls), useful for programming and monitoring all machine cycles, with the possibility of modifying film pull levels and customising wrapping programmes.

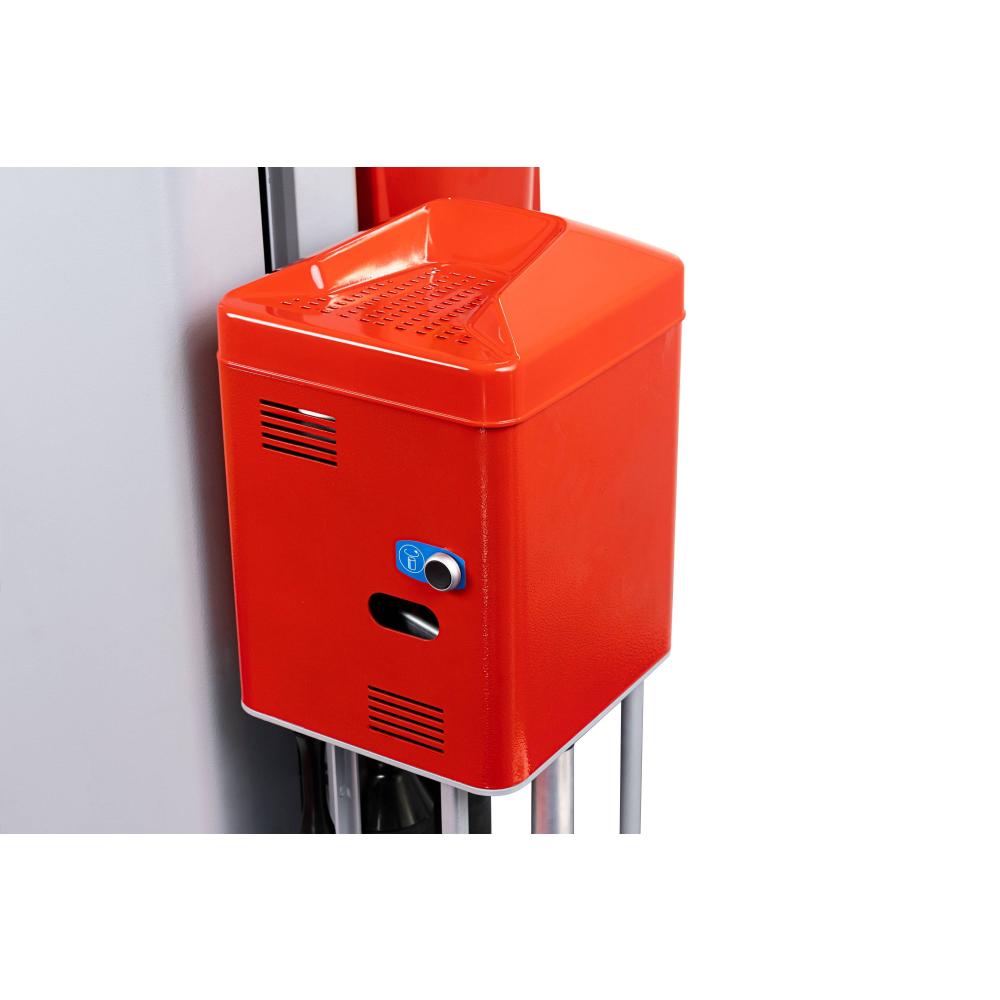

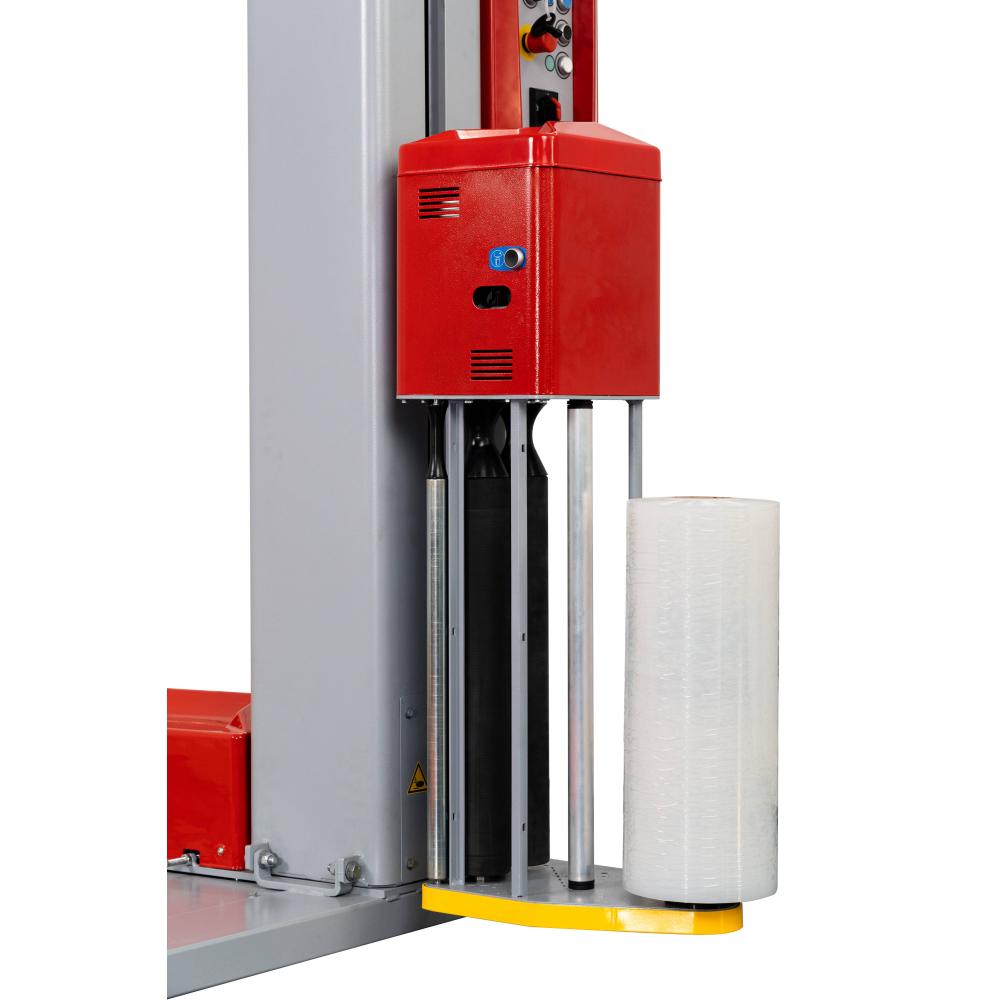

The Freesby MAX finally has three different carriages with a film pulling device through an electromagnetic brake, adjustable from the control panel.
ROI CALCULATORINDUSTRY:
Features
- Carriage type: 2 variable pre-stretch motors
- Film stretch: Adjustable from panel
- Pre-stretch: 150÷400%
- Installed power: 2.3 kW
- Plate capacity: 2000 kg
- Front and rear forklift capability: STD
