Vacuum Tube Lifters Jumbo Low-Stack

Ergonomic Pickup of Workpieces From low Positions

Application

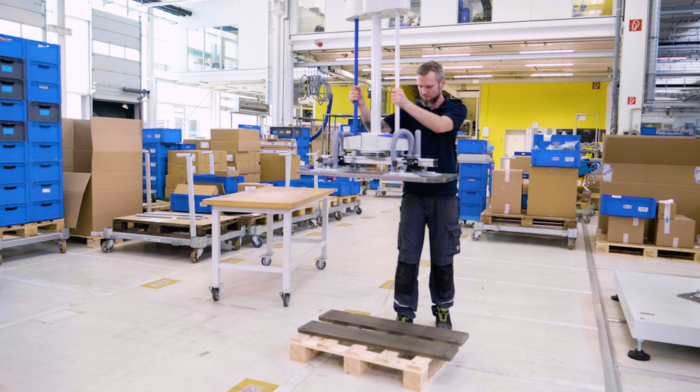

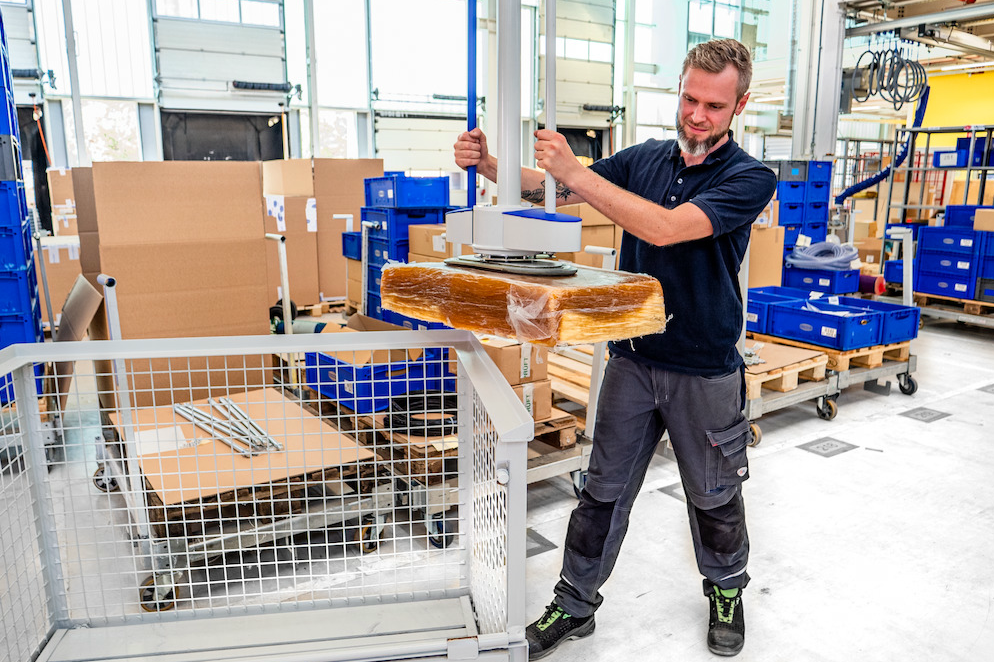

  • Picking up and depositing workpieces up to 80 kg from low heights while maintaining upright posture
  • Ergonomic handling in low and medium-height working areas
  • Ergonomic loading and unloading of transport containers, allowing you to reach deeply into e.g. grid boxes, crates, and cardboard boxes

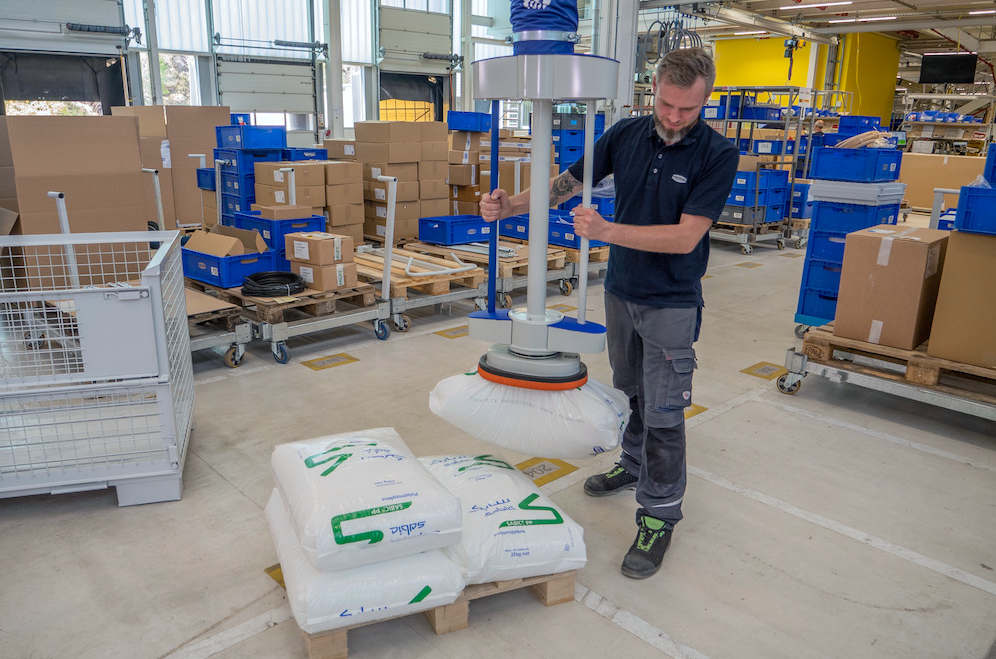

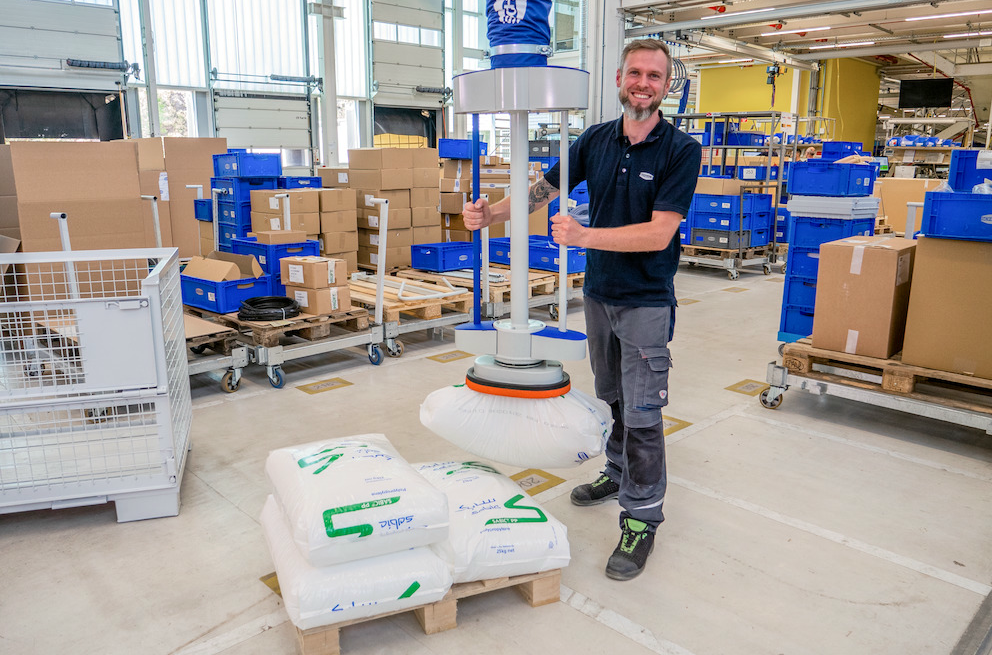

  • Fast and frequent lifting and moving of boxes, bags and other airtight workpieces

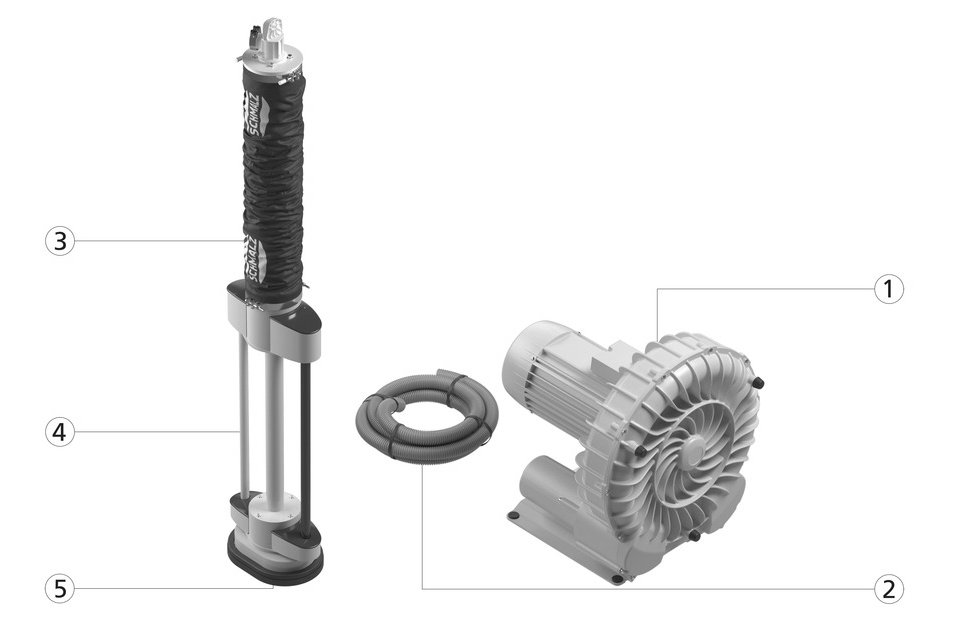

Vacuum generation (1) by electric blower with lift capacity up to 80 kg

Flexible vacuum supply hose (2)

Shortened lifting unit (3) with sturdy lift tube and integrated rotary union for continuous rotation of the tube lifter

Operator handle (4) with lateral twist grip for lifting, lowering and releasing the load and integrated mechanism for adjusting the suspension height without load

Individually selected vacuum grippers (5) for a wide variety of workpieces

Optional: radio remote control for switching the tube lifter on/off, quick-change adapter for suction cups and much more

ROI CALCULATOR

Features

  • Sustained reduction of back pain by maintaining upright posture while handling at low heights
  • Intuitive and reliable operation – the twist grip slides through the hand during the lifting movement without changing grip
  • Can be used for a wide range of workpieces and transport containers thanks to the wide range of grippers
  • The compact design is suitable for reaching into narrow containers
  • Reduced residual vacuum at the gripper makes it easy to release the workpiece
